Product Details:
|
| Flow Rate: | 450 L/min | Power: | 160 Kw |
|---|---|---|---|
| Pressure: | 35 Mpa | Function: | Testing Hydraulic Pumps And Motors |
| Advantage: | Easy To Operate | Brand: | HIGHLAND |
| Characteristic: | Patented Product | Specification Parameters: | YST450 Hydraulic Test Bench |

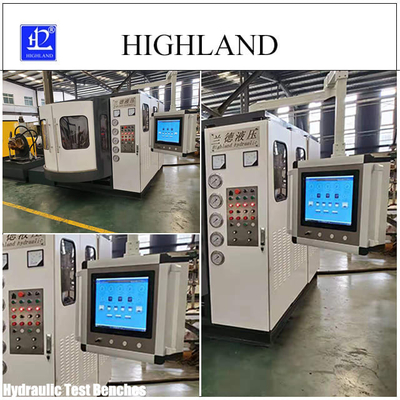

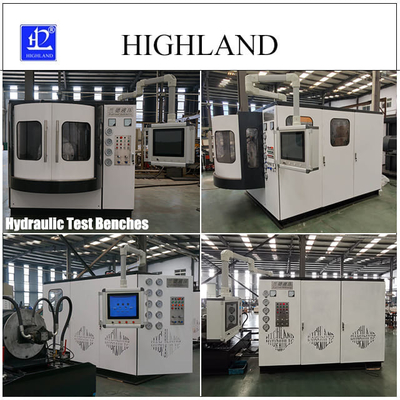

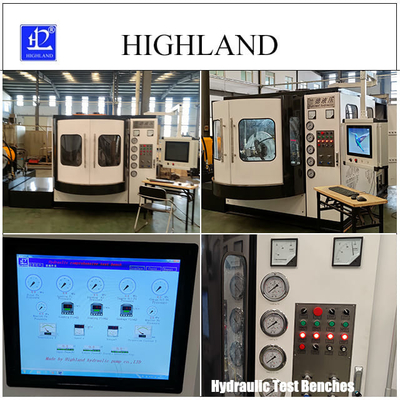

Highland's YST450 Hydraulic Test Bench is a patented product manufactured by a professional hydraulic test platform manufacturer. It offers a flow rate of 450 L/min and boasts great capabilities for testing a variety of hydraulic pumps and motors. This full functioning hydraulic test bench is a perfect fit for rotary drilling rig applications and is known for its excellent performance and reliability.
With its robust design, the YST450 Hydraulic Test Bench is able to perform a wide range of tests on hydraulic pumps and motors, giving you the data you need to make accurate assessments. The hydraulic test bench is designed to offer superior performance and high precision, making it ideal for testing and troubleshooting various types of hydraulic systems. It is also known for its durability and longevity, ensuring that you get long-term value from your purchase.
Highland's YST450 Hydraulic Test Bench is a must-have for any rotary drilling rig. With its robust design, superior performance, and patented technology, this hydraulic test bench is an excellent choice for testing and troubleshooting hydraulic pumps and motors. Invest in the YST450 Hydraulic Test Bench and get the reliable and accurate results that you need to keep your rotary drilling rig running smoothly.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
The HIGHLAND YST450 Hydraulic Test Bench is a full functioning hydraulic testing system designed to test hydraulic pumps and motors. It is manufactured by a custom manufacturer in Dezhou, China, and has been certified by CE. This patented hydraulic test bench offers a flow rate of 450 L/min, and is equipped with various features that make it easy to operate. Each set is priced between USD28000-120000, with a minimum order quantity of 1 set, and comes with plastic film packaging. Delivery of the product is expected to take between 30-60 working days, and payment must be made via T/T or Western Union. The supply ability of this product is 5 sets per month.
This YST450 Hydraulic Test Bench from HIGHLAND is a professional quality testing system that provides a wide range of feature-rich capabilities. It is designed to test a variety of hydraulic components including pumps and motors. It offers precise measurements and readings to ensure accurate results. It is also equipped with a safety system to protect operators from any potential risks. Furthermore, this test bench is made of durable material, which ensures it can withstand long-term usage and harsh conditions.
The HIGHLAND YST450 Hydraulic Test Bench is an ideal choice for testing, verifying, and troubleshooting hydraulic components. Its reliable performance, accurate readings, and user-friendly features make it a top-rated product among various industrial and automotive applications. With its patented design and high quality, this product is sure to meet all your hydraulic testing needs.
Searching for an efficient and reliable hydraulic test bench? Look no further than HIGHLAND’s hydraulic test bench! Our hydraulic test bench offers you customized solutions to ensure that you get exactly what you need. It is a patented product and has been certified with CE.
Our Hydraulic Test Benches are manufactured in our own factory and are designed to provide you with a customized solution to meet your specific needs. We are proud to be the leading provider of Hydraulic Test Benches in the industry. We guarantee you the highest quality of service and product.
For more information about our Hydraulic Test Benches, please contact us today to discuss your customization needs.
Hydraulic Test Benches are securely packaged and shipped in plastic film packaging. We ensure that the product is protected from any possible damage during shipping and handling.
We ship Hydraulic Test Benches all over the world and use reliable and trusted shipping companies for delivery. We also provide accurate tracking information to our customers to ensure that they can keep track of their packages.
