Product Details:
|
| Brand: | HIGHLAND | Function: | Testing Hydraulic Pumps And Motors |
|---|---|---|---|
| Advantage: | Compact Structure | Usage: | Ship |
| Pressure: | 42 Mpa | Flow Rate: | 500 L/min |
| Specification Parameters: | YST500 Hydraulic Test Bench | Characteristic: | Fully Automatic |

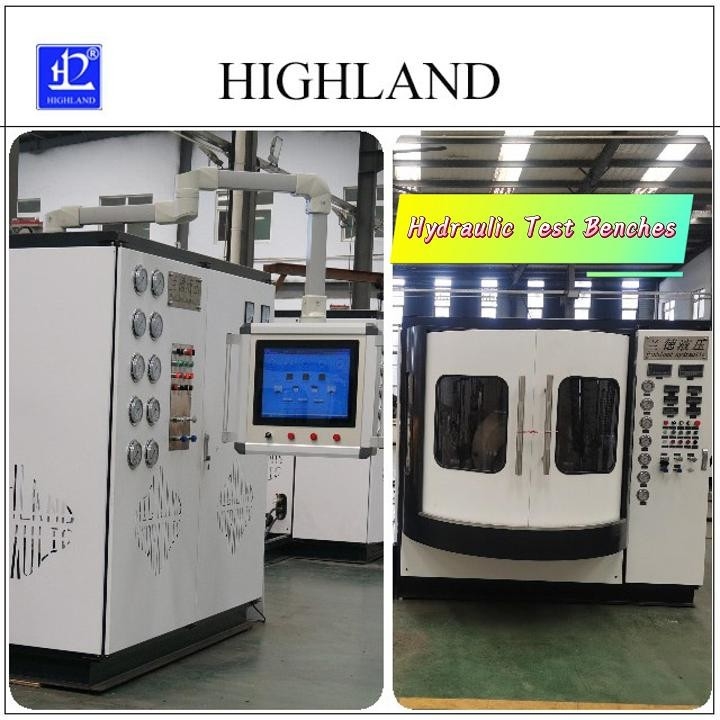

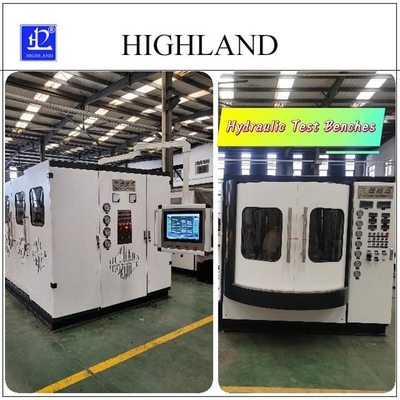

YST500 Hydraulic Test Bench is a fully automatic hydraulic test bench with a compact structure. It has a 500L/min flow rate and a pressure of 42 Mpa, making it perfect for testing hydraulic pumps and motors on ships. The YST500 has many advantages such as its compact structure and its high pressure level. Moreover, it is suitable for ship usage. This test bench is a perfect choice for all your testing needs.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
HIGHLAND YST500 Hydraulic Test Bench is a specialized and customized hydraulic test machine which is designed for testing hydraulic systems and components. This test bench features a compact structure, advanced technology and efficient performance. It is capable of testing pressure up to 42 Mpa, and flow rate up to 500 L/min. The test bench is CE certified and it is available for customization according to customers' requirements. The minimum order quantity is 1 set and the price ranges from USD 28000-120000/set. The test bench is packaged with plastic film and it will usually take 30-60 working days to deliver. Payment terms accepted include T/T and Western Union. The test bench is backed with a 5 sets per month supply ability. HIGHLAND YST500 Hydraulic Test Bench is the ideal choice for customers who need hydraulic test machine customization.
Brand Name: HIGHLAND
Model Number: YST500
Place of Origin: China Dezhou
Certification: CE
Minimum Order Quantity: 1set
Price: USD28000-120000/set
Packaging Details: Plastic film packaging
Delivery Time: 30-60 working days
Payment Terms: T/T, Western Union
Supply Ability: 5 sets per month
Flow rate: 500 L/min
Characteristic: Fully Automatic
Function: Testing Hydraulic Pumps And Motors
Specification parameters: YST500 Hydraulic Test Bench
Brand: HIGHLAND
Customize your Fully Automatic Hydraulic Test Bench with HIGHLAND! Based in China Dezhou, HIGHLAND has been a major Hydraulic Test Machine Customization factory for over 10 years. Our Hydraulic Test Device Factory specializes in Hydraulic Test Bench YST500, with the flow rate of 500 L/min, fully automatic characteristic, and CE certification. Minimum Order Quantity is 1 set, and the price range is USD28000-120000/set. Delivery time is 30-60 working days, and Supply Ability is 5 sets per month. Payment Terms are T/T and Western Union, with packaging details of plastic film packaging. Contact us today and customize your Hydraulic Test Bench with HIGHLAND!

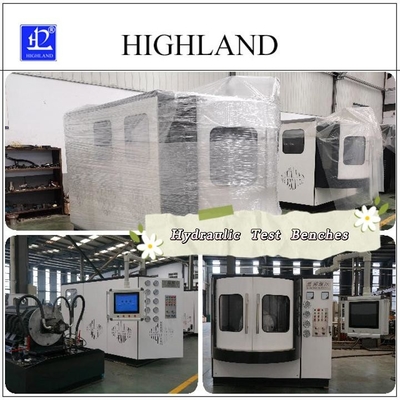

The hydraulic test benches are shipped in plastic film. The machines are labeled with the product name, model number, and serial number. The machines are then ready for shipping.
