Product Details:
|
| Pressure: | 42 Mpa | Characteristic: | Fully Automatic |
|---|---|---|---|
| Usage: | Rotary Drilling Rig | Power: | 110 Kw |
| Brand: | HIGHLAND | Advantage: | Compact Structure |
| Flow Rate: | 380 L/min | Specification Parameters: | YST380 Hydraulic Test Stands |

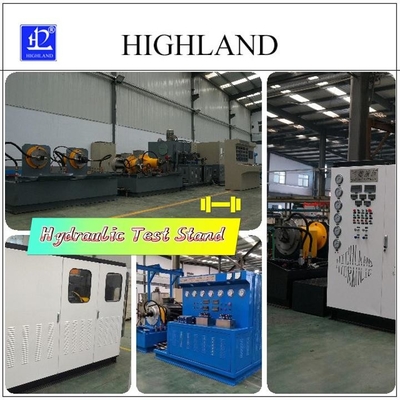

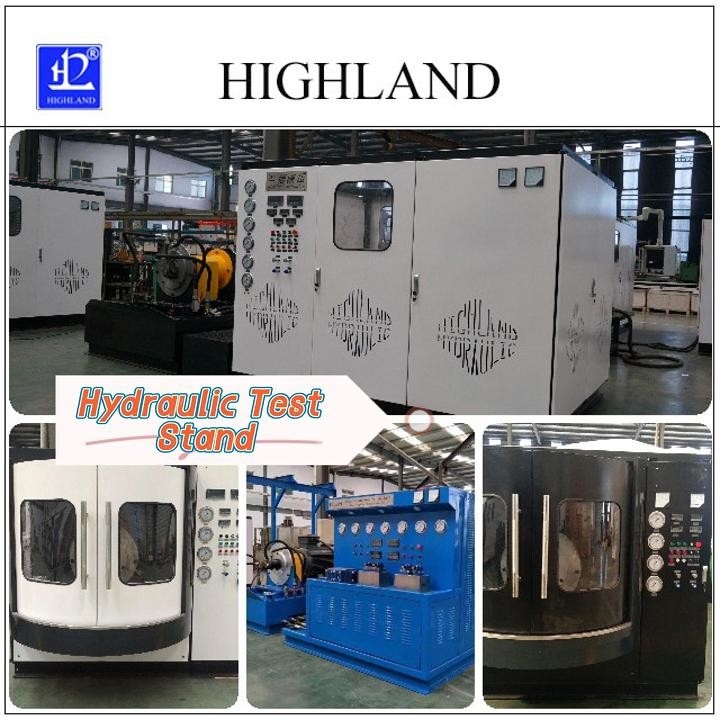

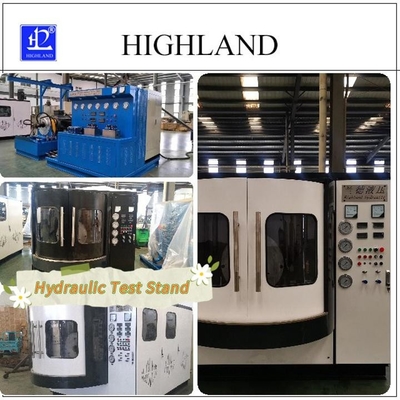

Hydraulic Test Stands are provided by HIGHLAND, a professional and experienced Hydraulic Test Stands factory. Our Fully Automatic Hydraulic Test Stands are designed with compact structure and customized manufacturing, which can be used for Rotary Drilling Rig. The maximum pressure can reach up to 42 Mpa, which ensures the durability and reliability during the testing process.
We are dedicated to providing high-quality Hydraulic Test Stands for our customers. Our Customized Manufacturer Hydraulic Test Stands, model YST380, have been strictly tested and certified to meet the highest standards. We ensure that our products are reliable, durable and ready to use. Our professional staffs are always available to provide technical support and service for our customers.
We strive to provide the best Hydraulic Test Benches for our customers, and we are committed to our customers' satisfaction. If you have any questions or need any help, please feel free to contact us and we will do our best to meet your needs.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Stands, with brand name HIGHLAND and model number YST380, are designed and manufactured in China Dezhou. They are certified with CE and the minimum order quantity is 1 set. The price for each set varies between USD25000-45000 according to different customizations. The packaging is plastic film packaging and the delivery time is 30-60 working days. Payment terms can be T/T or Western Union and the supply ability is 5 sets per month.
The YST380 Hydraulic Test Stands are specially designed to test hydraulic pumps and motors with a flow rate of 380 L/min and a pressure of 42 Mpa. They are widely used in rotary drilling rigs. As a professional hydraulic test stands factory, HIGHLAND is dedicated to providing customers with customization services for the hydraulic test machine. The YST380 Hydraulic Test Stands are of high quality, reliable performance and cost-effective.
Brand Name: HIGHLAND
Model Number: YST380
Place of Origin: China Dezhou
Certification: CE
Minimum Order Quantity: 1set
Price: USD25000-45000/set
Packaging Details: Plastic film packaging
Delivery Time: 30-60 working days
Payment Terms: T/T, Western Union
Supply Ability: 5 sets per month
Highland Hydraulic Test Benches are customized hydraulic test device equipment and hydraulic test machine factory. With the YST380 Hydraulic Test Stands, you can test hydraulic pumps and motors with 110 kw power and 42 mpa pressure, which provides you with a compact structure.
Our Hydraulic Test Stands are carefully packaged and shipped to ensure safe and secure delivery. Our packaging is designed to protect the products from any possible damage during shipping and provide adequate protection from shipping and handling hazards. The product is packaged in plastic film and wrapped in bubble wrap for extra protection. The machine is then sealed with reinforced tape for extra security. We also provide tracking information for our customers so they can track the progress of their shipment.
All our Hydraulic Test Benches are shipped using a reliable and reputable carrier, such as FedEx or UPS, and are insured for the full value of the order. We also offer expedited shipping services, for customers who need their order delivered quickly.
