Product Details:
|
| Brand: | HIGHLAND | Product Name: | MYHT-1-4 Hydraulic Tester |
|---|---|---|---|
| Max Pressure: | 420 Bar | Oil Temperature Range: | -20℃ -150℃ |
| Usage: | Cement Mixer | Advantage: | Data Display |
| Function: | Test Hydraulic Flow Rate,Pressure,Temperature |

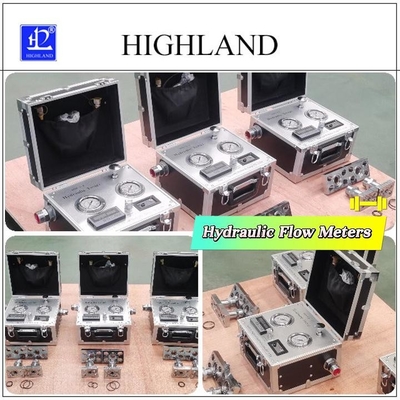

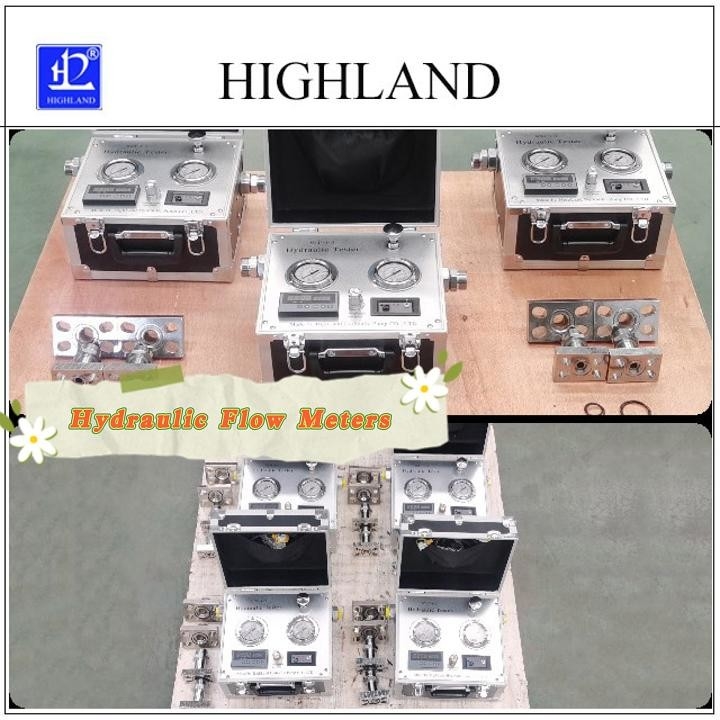

The MYHT-1-4 Hydraulic Tester is an accurate flow meter from HIGHLAND. It is designed to measure the flow rate of hydraulic fluids with a maximum pressure of 420 bar. The flow rate of this hydraulic flow meter can reach up to 400L/min. It is a reliable device that can provide superior accuracy in any fluid system.
The MYHT-1-4 Hydraulic Tester is designed to be user-friendly, and it is easy to install and maintain. It features a large-sized LCD display, which can provide clear and accurate readings. It also features an intuitive interface which makes it easy to control and adjust the settings. Additionally, the device can be connected to a variety of digital devices and systems, allowing for remote monitoring and control.
The MYHT-1-4 Hydraulic Tester is a reliable and accurate device that can provide accurate measurements in hydraulic systems. Its high-pressure capabilities make it the perfect choice for any industrial or commercial application. With its intuitive design and easy installation, this device will provide superior performance in any system.
| MYHT Hydraulic Tester Technial Date | ||||||
| Model | Flow(L/min) | Flow Precision | Pressure(bar) | Oil Temperature(°C) | Dimensions(mm) | Weight(Kg) |
| MYHT-1-2 | 200 | ±1% | 420 | 150 | 295*265*210 | 6.1 |
| MYHT-1-4 | 400 | ±1% | 420 | 150 | 295*265*210 | 8.8 |
| MYHT-1-5 | 500 | ±1% | 420 | 150 | 295*265*210 | 10.5 |
| MYHT-1-7 | 800 | ±1% | 420 | 150 | 310*285*261 | 14 |
Hydraulic Flow Meters are essential components for any hydraulic system and have a wide range of applications, from power generation to industrial processes. HIGHLAND MYHT-1-4 Hydraulic Flow Meters is a great choice for testing and monitoring the flow of hydraulic fluids. It is certified by CE, comes with a minimum order quantity of 1 set, and the price is USD1750/set. The packaging detail is wooden case, and the delivery time is 15-30 working days. Payment terms are T/T, Western Union. The maximum pressure is 420 Bar and the maximum flow rate is 400L/min. It also has a wide oil temperature range of -20℃ - 150℃, and the special advantage is that it has a data display. With its accurate performance, HIGHLAND MYHT-1-4 Hydraulic Flow Meter is an ideal choice for any hydraulic testing and monitoring needs. It is designed to provide precise measurements, and its performance is reliable and consistent. It is also easy to install and maintain, and has a high supply ability of 100 sets per month. The HIGHLAND MYHT-1-4 Hydraulic Flow Meter is the perfect tool for hydraulic technicians who require accurate hydraulic tester data and reliable performance.

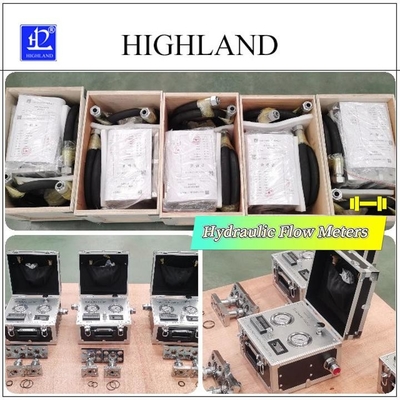

The Hydraulic Flow Meters products are packaged in a sturdy cardboard box and sealed with bubble wrap. The product is then shipped in climate-controlled containers to ensure safe transit.
