Product Details:
|
| Power: | 90 Kw | Loading Method: | Local Loading |
|---|---|---|---|
| Pressure: | 35 Mpa | Features:: | Easy Operation |
| Flow Rate: | 380 L/min | Color: | Customizable |
| Warranty: | 1 Year | Motive Force: | Electromotor |
| Medium: | Hydraulic Oil | Product Name: | High Integration Of Marine Test Stand YST380 |
| Highlight: | Marine Hydraulic Test Stands YST380,High Integration Hydraulic Test Stands,YST380 Hydraulic Cylinder Test Bench |
||

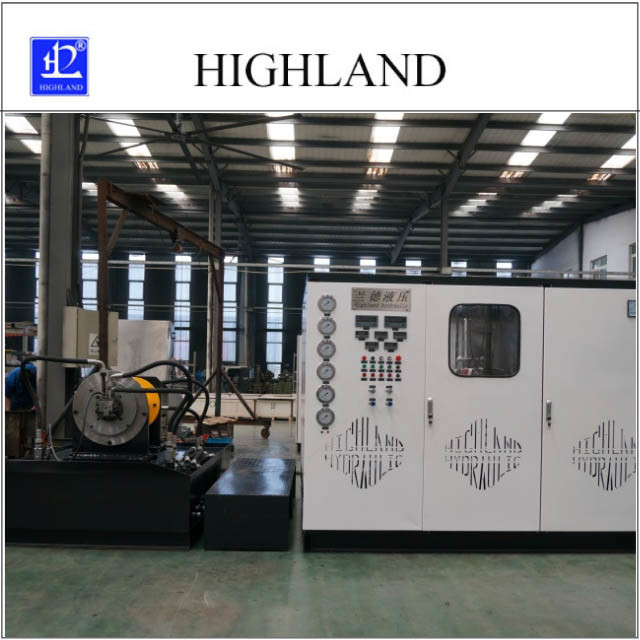

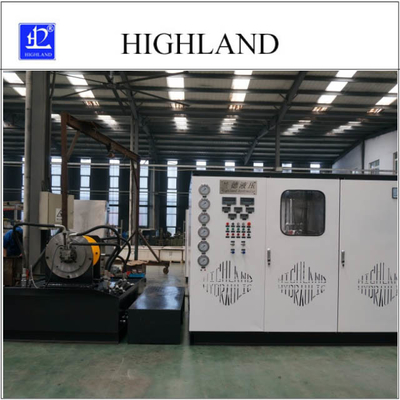

High integration of marine test stand YST380
Description Hydraulic Test Stands
YST series hydraulic test stands is used for the factory validation of products of hydraulic pump, motor and valve production and maintenance enterprises and the fault diagnosis of equipment hydraulic system. The products are developed, designed and produced by our company, and can be combined arbitrarily according to the needs of customers.
Hydraulic Test StandsStandard Specification
YST Series Hydraulic testing table are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Stands Application
hydraulic test stands is widely applicable to agriculture, construction, principles, and material transportation, municipal construction, forestry, and lawn care machinery vehicles for hydraulic pump and motors
Company Information Hydraulic Test Stands
Jinan Hailande's hydraulic pump Co., Ltd. is a high -tech enterprise that integrates hydraulic design, manufacturing, and maintenance. The company has strong technical development capabilities, first -class scientific management talents and advanced product manufacturing and testing equipment. The site is located in Yucheng Economic Development Zone, Shandong. It uses the convenience of Jinan to set up a marketing center in Jinan to radiate all over the country. The factory is located in Yucheng Economic Development Zone, Shandong.
Hydraulic Test Stands Best Products
Tag : Hydraulic Test Stands,hydraulic pump test bench,hydraulic cylinder test bench
