Product Details:
|
| Product Model: | YST500 | Material: | Steel |
|---|---|---|---|
| Pressure: | 42 Mpa | Efficiency: | High |
| Flow Rate: | 380L/min | Oil Purification: | Optional |
| Power: | 160kw | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| Highlight: | 500l/Min Flow Hydraulic Test Stands,300l/Min Flow Hydraulic Test Stands,Concrete Equipment hydraulic test bench |
||

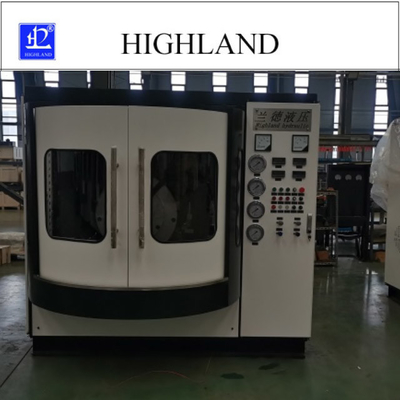

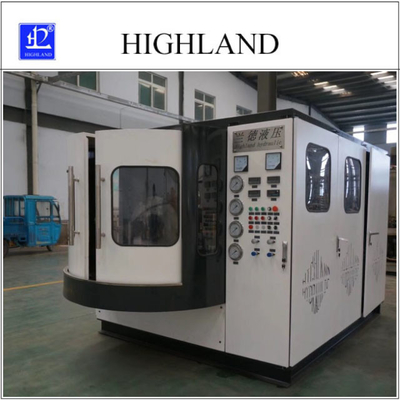

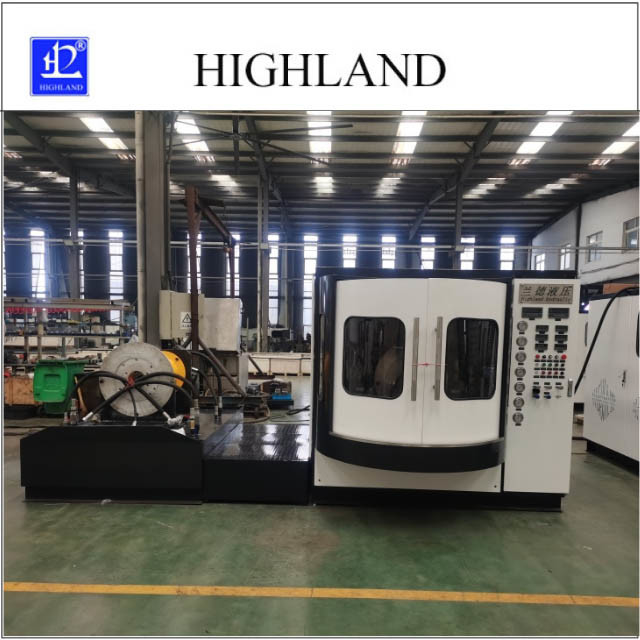

Concrete equipment hydraulic test stand has complete functions
Information
The headquarters of Jinan Hailande Passing Pump Co., Ltd. is located in Licheng District, Jinan, Shandong. The factory is located in the Yucheng Economic Development Zone. It uses Jinan's transportation convenience to radiate all parts of the country. Founded in 2007, the company has 152 employees, covering an area of 11,000 square meters, a construction area of 9,500 square meters, a registered capital of 10 million yuan, and an annual gross value of 55 million yuan.
Standard Specification
YST Series Hydraulic testing table are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Advantage Hydraulic Test Stands
Technical parameters of hydraulic test stands
Flow: 300-500l/min
Pressure: 35MPa
Power: 75-315kw
Motive force: power recovery drive, motor full hydraulic drive, variable frequency motor drive, diesel engine drive
Safety Hydraulic Test Stands
The YST/H series hydraulic test stands is a special equipment produced for hydraulic pumps and hydraulic motor manufacturers for component factory inspection. The system has selected high -quality hydraulic elements at home and abroad. The attachments have the characteristics of compact structure, reliable quality, reasonable design, easy operation and maintenance. This product has reached the international leading level.
Our Service
Tag : Hydraulic Test Stands,Air force hydraulic test stand,Servo valve test stand
