Product Details:
|
| Product Model: | YST450 | Function: | Hydraulic Motor Maintenance Factory Validation |
|---|---|---|---|
| Pressure: | 35 Mpa | Cooling Method: | Anhydrous |
| Flow Rate: | 380 L/min | Ordinary Motor: | 75KW |
| Power: | 90 Kw | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| Highlight: | Dredger Hydraulic Test Stand,75KW hydraulic test stand,35mpa hydraulic test stand for aircraft |
||
Dredger hydraulic test stand environmental protection and energy saving
Standard Specification hydraulic test stand
YST Series Hydraulic testing table are used for checking and proofreading the products that hydraulic system's breakdown diagnosis.These products are researched and produced by ourselves,so we could combine conduct according to customers' needs.
Description hydraulic test stand
HIGHLAND Hydraulic was founded in 2001. It is headquartered in Jinan, Shandong. It is a professional hydraulic pump manufacturer. It has now transformed from traditional manufacturers to a platform for the whole society to incubators. In the Internet era, Hyland Hydraulic is committed to becoming an Internet company, subverting the closed system of its own self -made system, becoming a node in the network interconnection, connecting various resources, and creating a co -creation of the user value exchange in the e -commerce era. A win -win ecological chain will achieve a win -win value of all parties.
Technical parameter
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Application hydraulic test stand
Suitable for static hydraulic driving forklifts, tires or crawler off -road cranes, large -scale turning vehicles driven by static hydraulic driver, large -scale self -propelled flat transport vehicles, beam transportation vehicles, self -type high -altitude lifting platforms
hydraulic test stand Specification
hydraulic test stands adopts the world's advanced power recovery technology, saving more than 70%of the energy sources. All valve design uses the installation structure. The specific layout is simple, the performance is stable, the failure rate is low, and the processing is easy to deal with.
hydraulic test stand Advantage
hydraulic test stands function meets customer requirements
Easy to operate, detect the data all
Beautiful appearance design, meet the industrial aesthetics requirements

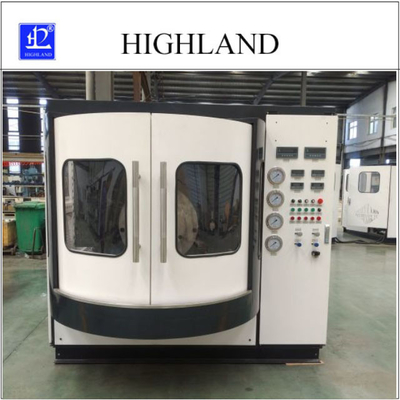

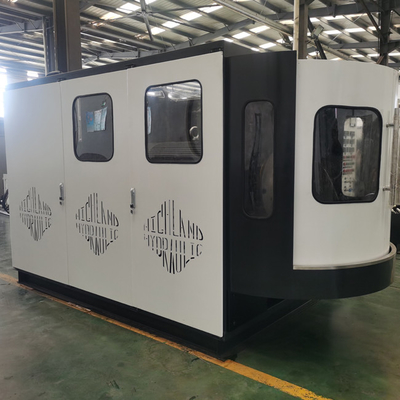

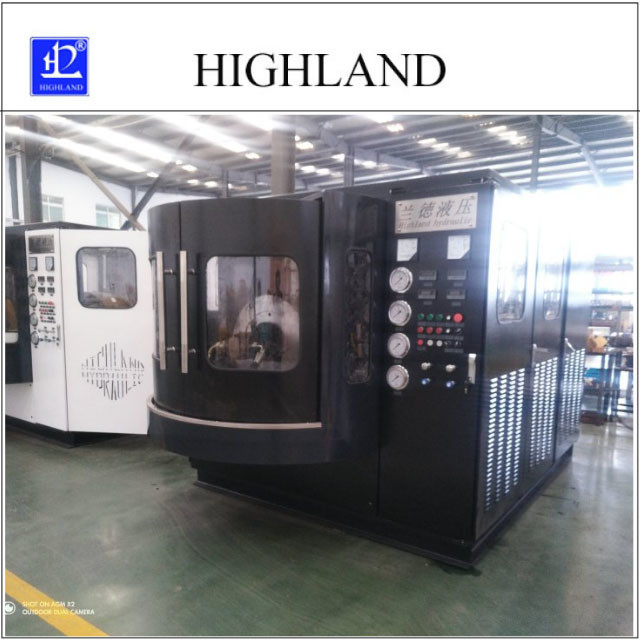

hydraulic test stand Photos
Tag : Hydraulic Test Stands, hydraulic test stand for aircraft ,air force hydraulic test stand
