Product Details:
|
| Power Supply: | Electric Motor, 75KW-160KW, 350KW Or Power Recovery | Display: | Computer Display And Digital Display Meter |
|---|---|---|---|
| Function: | Flow, Pressure, Temperature, Etc Testing Items | Pressure: | 0-42Mpa |
| Power Source: | 220V/380V 50Hz Or Customized | Application: | To Test Hydraulic Pump, Motor, Valve, Cylinder |
| Warranty: | 1 Year | Product Name: | YST380 Hydraulic Test Stands For Repairing Hydraulic Pumps And Motors |
| Highlight: | 42Mpa Hydraulic Test Stands,YST380 Hydraulic Test Stands,CE Hydraulic Test Stands |
||

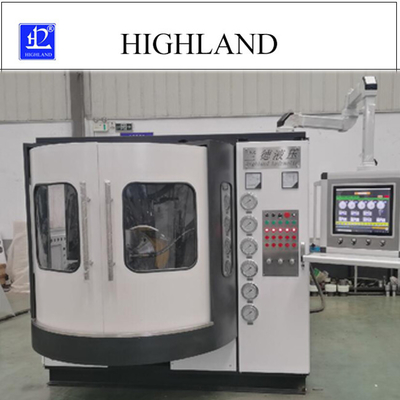

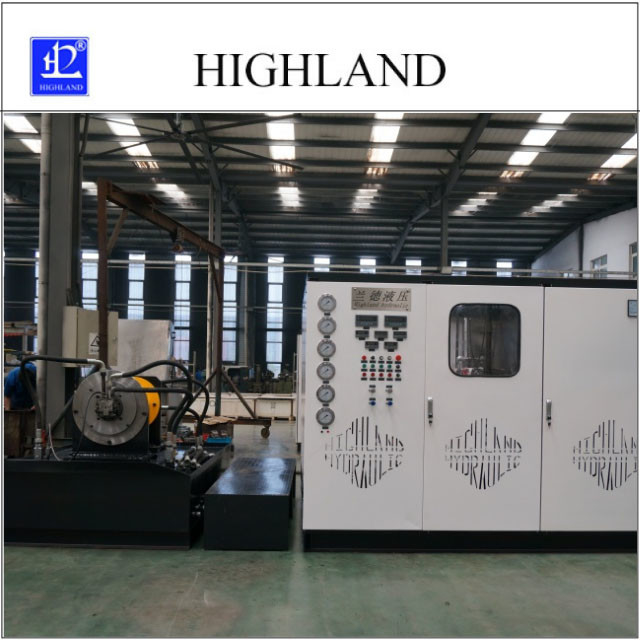

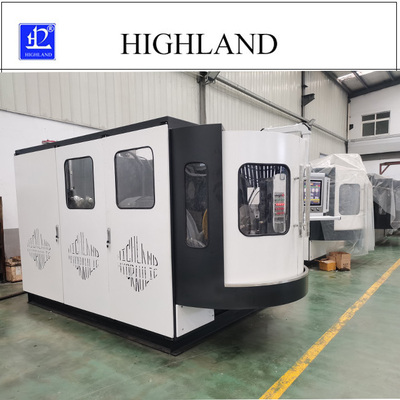

7. YST380 hydraulic test stands for repairing hydraulic pumps and motors
Hydraulic test stands brief introduction:
YST380 hydraulic test stands are used for checking and proofreading products that include hydraulic pump, hydraulic motor, hydraulic cylinder and valve. It also can conduct hydraulic system's breakdown diagnosis. These products are researched and produced by ourselves, so we could customize according to customers' needs.
Hydraulic test stand is divided into five varieties: hydraulic pump test stand, hydraulic motor test stand, hydraulic valve test stand and hydraulic cylinder test stand and comprehensive test stand. This series of test stand has designed various configuration, for example: proportional control system, digital display system, variable frequency speed regulation system and computer measurement and control system etc. The user can select it according to your need.
Hydraulic test stand test items:
1. Functional requirements : it is used for testing hydraulic pumps,high speed motors,low speed motors,hydraulic cylinders and all kinds of valves
2. Pumps and Motors Model Range: (according to part A’s request)
3. Test Item:
1). Displacement checking testing : No-load Pressure,determination of displacement.
2). Volumetric Efficiency/Total Efficiency Testing: Under the rated conditions,test volumetric efficiency and total efficiency.
3). Overload Testing: Max.displacement,Nominal Speed,125% of the rated pressure, or max. pressure operation more than 1 minute
4). External Leakage: in the above testing, Check the leakage of sealing parts.
Hydraulic test stand technical specification:
| Hydraulic Test Stands Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
FAQ of hydraulic test stand:
Q1: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic test stand. 20 years experience in hydraulic industry for oversea and domestic markets.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by sea, shipping time depends on the destination port. Our loading port is Qingdao port.
Q3: Do you offer guarantee for the products?
A: Each set of hydraulic test stand should be tested before shipping, test report can be sent if requested.
Warranty 12 months.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order, full advance payment.
