Product Details:
|
| Product Name: | Hydraulic Test Stands | Characteristic: | Complete Detection Data |
|---|---|---|---|
| Advantage: | Modular Layout | Usage: | Excavators |
| Power: | 110kw | Pressure: | 42 Mpa |
| Flow Rate: | 500L/min | Show Location: | Locale |
| Highlight: | 42 Mpa Hydraulic Test Stands,Customization Hydraulic Test Stands,Modular Layout Hydraulic Test Equipment |
||

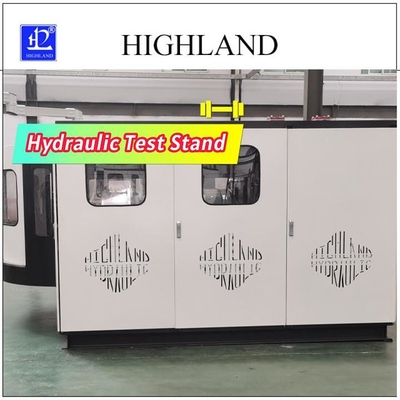

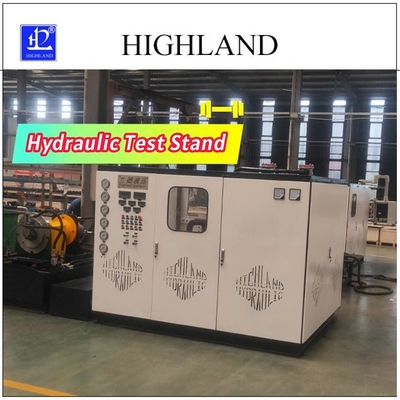

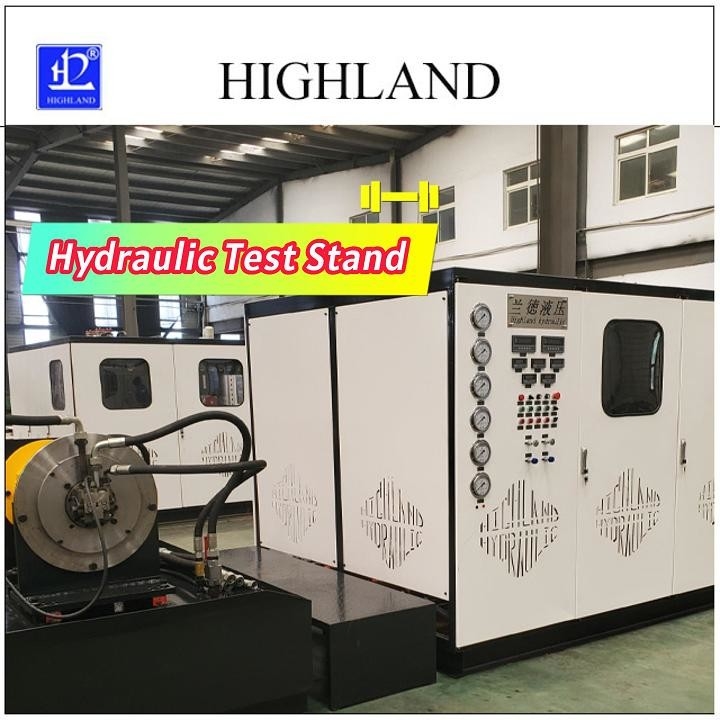

Hydraulic Test Stands are hydraulic pressure testing devices designed to provide accurate, complete detection data for excavators. These machines are powered by 110kw and can generate a maximum pressure of 42 Mpa. Our hydraulic test stands are designed to offer a reliable and efficient solution for testing the performance of modern hydraulic systems. With the capability to test a variety of hydraulic components, these machines can provide a comprehensive solution for hydraulic pressure testing. Features include a robust design, precise data acquisition, and advanced safety features. Our hydraulic test stands are the perfect choice for those looking for a reliable and cost-effective way to test hydraulic systems.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Applications:
If you are looking for a reliable, high-end hydraulic test stand, then you should consider HIGHLAND's YST380 Series Hydraulic Test Stands. This series of hydraulic test stands is produced by HIGHLAND, a leading manufacturer of hydraulic test stands in China. All HIGHLAND YST380 Series Hydraulic Test Stands have been certified by CE, meeting the highest standards in quality and safety. With a pressure of up to 42 Mpa and a flow rate of up to 450L/min, this series of hydraulic test stands are capable of performing high-precision tests with great accuracy. Additionally, the YST380 Series Hydraulic Test Stands come with a 110kw power motor, making it extremely efficient and reliable. The YST380 Series Hydraulic Test Stands are also customizable and can be tailored to your specific testing needs.
HIGHLAND's YST380 Series Hydraulic Test Stands are available at competitive prices ranging from USD25000 to 45000 per set. The packaging for this series of hydraulic test stands is in plastic film, ensuring that your product reaches you in perfect condition. Delivery time is usually between 30 to 60 working days. At HIGHLAND, we accept many payment methods, including T/T and Western Union. With a production capacity of 5 sets per month, you can always rest assured that HIGHLAND will meet your demand for the YST380 Series Hydraulic Test Stands.
For the best Hydraulic Test Stands Factory in China, look no further than HIGHLAND. Our YST380 Series Hydraulic Test Stands are suitable for a wide range of testing scenarios and can be customized to fit your specific needs. With our reliable services and competitive prices, we are sure that you will not be disappointed with HIGHLAND's YST380 Series Hydraulic Test Stands.
Hydraulic Test Stands are widely used in hydraulic performance testing, with the brand name HIGHLAND, model number YST380 Series. The place of origin is China Dezhou, and the certification is CE. The minimum order quantity is 1set, and the price ranges from USD25000-45000/set. The packaging details are Plastic film packaging, the delivery time is 30-60 working days, and the payment terms are T/T, Western Union. The supply ability is 5 sets per month, with a power of 110kw, pressure of 42 Mpa, flow rate of 450L/min, and the advantage of Modular Layout. These Hydraulic Test Stands are ideal for excavators.
At our Company, we provide industry leading remote technical support and service for our Hydraulic Test Stands.
Our expert technicians are available to answer questions and provide online guidance for your hydraulic testing. We provide:
We strive to ensure that our Hydraulic Test Stands meet your needs and perform reliably.
Hydraulic Test Stands are packaged to ensure they remain in excellent condition during shipping.
Our Hydraulic Test Stands are shipped with trusted carriers. We offer several shipping options. We take pride in our fast shipping times.
Q1: What is the brand name?
A1: The brand name is HIGHLAND.
Q2: What is the model number?
A2: The model number is YST380 Series.
Q3: Where is it manufactured?
A3: It is manufactured in Dezhou, China.
Q4: Does it have certification?
A4: Yes, it has a CE certification.
Q5: What is the minimum order quantity?
A5: The minimum order quantity is 1 set.
Q6: What is the price?
A6: The price is USD25000-45000/set.
Q7: How is it packaged?
A7: It is packaged in plastic film.
Q8: How long does it take to deliver?
A8: Delivery takes 30-60 working days.
Q9: What payment terms do you accept?
A9: We accept T/T and Western Union.
Q10: How many sets can you supply per month?
A10: We can supply up to 5 sets per month.
