Product Details:
|
| Show Location: | Locale | Brand: | HIGHLAND |
|---|---|---|---|
| Advantage: | High Oil Filtration Accuracy | Usage: | Rotary Drilling Rig |
| Product Name: | Hydraulic Test Stands | Characteristic: | Beautiful Appearance Design |
| Flow Rate: | 450 L/min | Power: | 160 Kw |

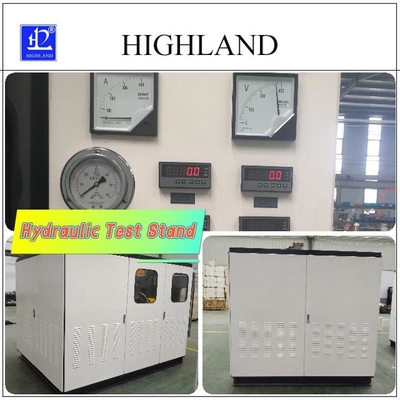

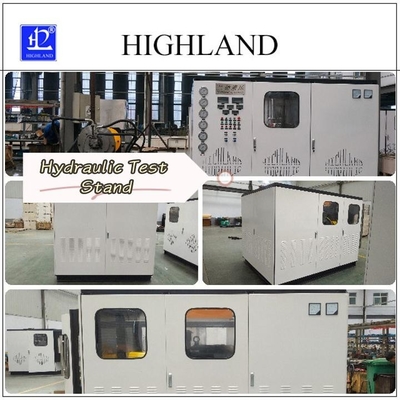

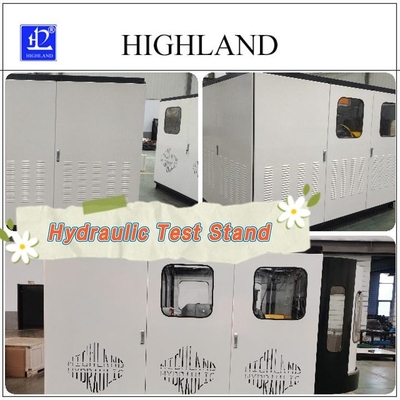

We are offering Hydraulic Test Stands, which are specifically designed testing equipment for hydraulic systems. With a pressure rating of 35 Mpa, and a flow rate of 450 L/min, these stands are ideal for testing hydraulic components and systems, ensuring their reliability and safety. Our Hydraulic Test Stands come with a unique, beautiful appearance design, and a power of 160 Kw. As one of the leading hydraulic testing equipment manufacturers and Hydraulic Test Stands Factory, we offer custom-made Hydraulic Test Stands that are perfect for your specific needs.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
The HIGHLAND YST450 Series is a customized Hydraulic Test Stand developed for the rotary drilling rig industry. It is a hydraulic testing equipment with a pressure of up to 35 Mpa and a power of 160 Kw. It comes with CE certification and is manufactured in Dezhou, China. This hydraulic testing machine is priced between USD25000-45000/set, and is packaged with plastic film. The minimum order quantity is 1 set, and the delivery time is 30-60 working days. Payment can be done through T/T, Western Union, and supply ability is 5 sets per month.
The HIGHLAND YST450 Series is a hydraulic test system designed to provide reliable and accurate results for the rotary drilling rig industry. This cutting-edge testing machine is locally available and is highly customizable for different applications. It is a great choice for anyone looking for a high-quality hydraulic testing equipment with excellent performance and an affordable price.
We provide Hydraulic Test Stands Customization Service for HIGHLAND YST450 Series, with CE Certification, minimum order quantity 1set, price range from USD25000-45000/set. The packaging is plastic film packaging. Delivery time is 30-60 working days. Payment terms are T/T, Western Union. We can supply 5 sets per month. With the advantage of high oil filtration accuracy, it is mainly used in rotary drilling rig, pressure is 35 Mpa. Show location is Dezhou, China.
The Hydraulic Test Stands are packaged and shipped in the following manner:
