Product Details:
|
| Characteristic: | Patented Product | Advantage: | Compact Structure |
|---|---|---|---|
| Product Name: | Hydraulic Test Stands | Flow Rate: | 380 L/min |
| Pressure: | 42 Mpa | Show Location: | Locale |
| Usage: | Excavators | Power: | 110 Kw |

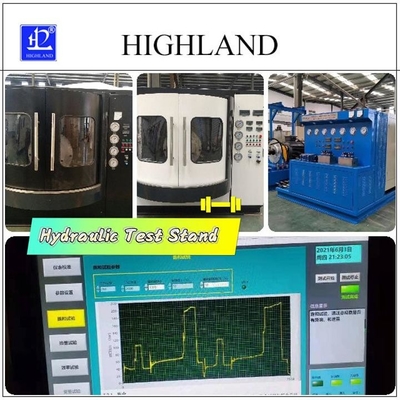

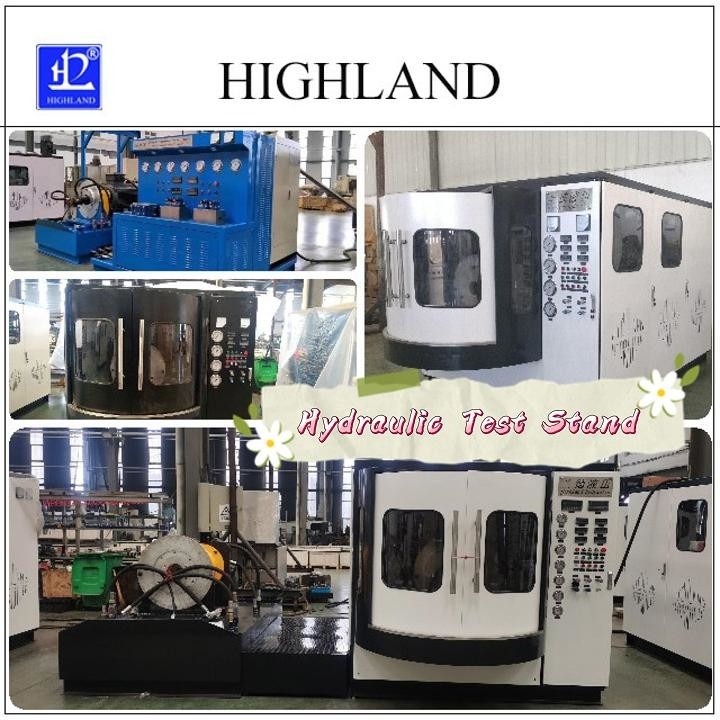

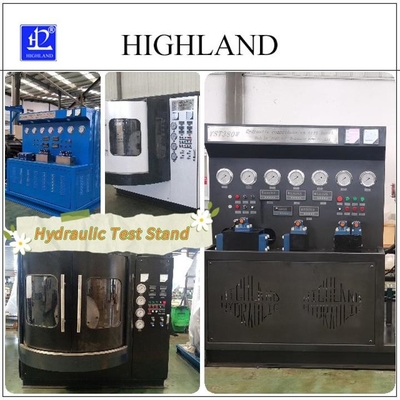

HIGHLAND Hydraulic Test Stands are an advanced, patented product designed to help you get the most out of your excavators. Our customized Hydraulic Test Stands are powered by 110 Kw and provide an advanced hydraulic testing machine for maximum hydraulic performance and test equipment reliability. Our Hydraulic Test Stands offer the perfect solution for all hydraulic testing needs and feature cutting-edge, patented technology and precision engineering. In addition, our Hydraulic Test Stands are designed for easy setup and operation, making them an ideal choice for any hydraulic testing application. With our Hydraulic Test Stands, you will be able to maximize your excavator's hydraulic performance and reliability while ensuring maximum safety and efficiency.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Stands from HIGHLAND are the perfect solution for testing hydraulic systems and components. With the patented YST380 model, customers can expect an advanced testing experience that is both high-performance and cost-effective. This system is CE certified and features a 110 Kw power output. It is most commonly used for testing excavators, though it can be used to test any hydraulic system.
This reliable testing system is highly durable and is the perfect choice for a variety of hydraulic system tests. HIGHLAND's Hydraulic Test Stands are easy to use and feature an intuitive control system. Additionally, with its advanced safety features, customers can be sure to receive a safe and secure testing experience.
For an optimal testing experience, the YST380 model offers a comprehensive set of tests including pressure, flow, and leak tests. The results of the tests are displayed on a large LCD screen which ensures accurate readings. With its compact design, customers can easily transport the YST380 model to their desired location.
The YST380 model is available for purchase in minimum orders of 1 set. Prices range from USD25000-45000/set and the product is packaged using plastic film packaging. Delivery time is typically within 30-60 working days and customers can pay using T/T or Western Union. Furthermore, HIGHLAND can supply up to 5 sets per month.
Brand Name: Highland
Model Number: YST380
Place of Origin: China Dezhou
Certification: CE
Minimum Order Quantity: 1set
Price: USD25000-45000/set
Packaging Details: Plastic film packaging
Delivery Time: 30-60 working days
Payment Terms: T/T, Western Union
Supply Ability: 5 sets per month
Advantage: Compact Structure
Show location: Locale
Characteristic: Patented Product
Usage: Excavators
Pressure: 42 Mpa
Hydraulic Test Stands Customization is a hydraulic pressure testing device and hydraulic pump motor testing equipment produced by Highland. Model YST380 is certified by CE, and the minimum order quantity is 1set. The price of each set is USD25000-45000, and the packaging is plastic film packaging. It takes 30-60 working days to deliver the goods. Payment can be made by T/T or Western Union, and the supply ability is 5 sets per month. The product has the advantages of compact structure, and it is a patented product. It is mainly used for excavators with a pressure of 42 Mpa. It is located at Locale.
Our hydraulic test stands are carefully packed and shipped to ensure they arrive safely and in good condition. We use high-quality packaging materials such as plastic film to protect the product.
We use a variety of shipping methods to ensure a quick and safe delivery. For larger orders, we use a trusted third-party shipping provider. We offer both ground and sea shipping services.
A1: The brand name of the hydraulic test stands is HIGHLAND.
A2: The model number of the hydraulic test stands is YST380.
A3: The hydraulic test stands are manufactured in Dezhou, China.
A4: The hydraulic test stands have a CE certification.
A5: The minimum order quantity for hydraulic test stands is 1 set.
