Product Details:
|
| Usage: | Excavators | Power: | 110 Kw |
|---|---|---|---|
| Brand: | HIGHLAND | Pressure: | 42 Mpa |
| Advantage: | Compact Structure | Product Name: | Hydraulic Test Stands |
| Flow Rate: | 380 L/min | Show Location: | Locale |

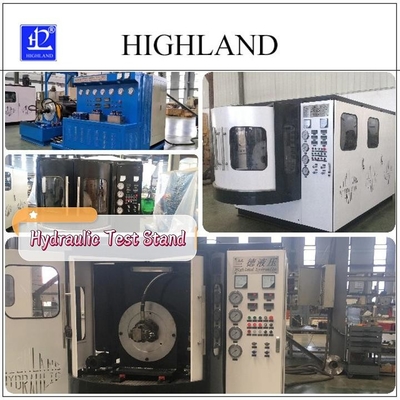

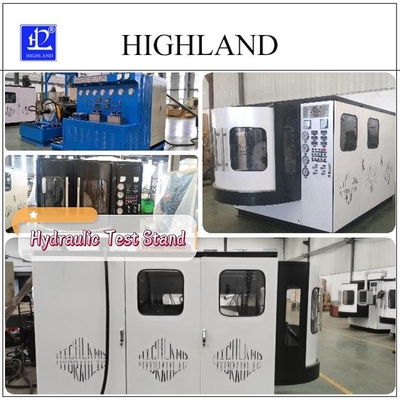

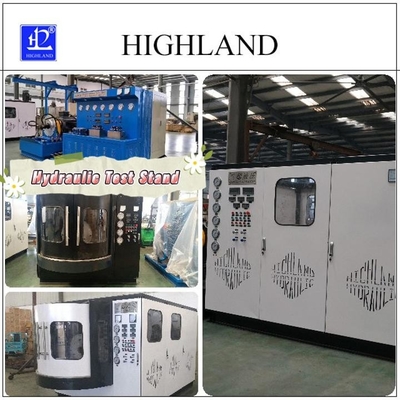

Hydraulic Test Stands are patented hydraulic performance test equipment for Excavators. This hydraulic testing machine is capable of providing up to 110 Kw of power and 42 Mpa of pressure at the Locale. This Hydraulic Test Stands is designed for testing & evaluating the hydraulic components of Excavators, such as pumps, valves, and motors. It provides accurate data and reliable results in a safe and controlled environment.
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic Test Stands, manufactured by HIGHLAND, with model number YST380, features a pressure of 42 Mpa and power of 110 Kw. It is a Hydraulic Pressure Testing Device designed for customized applications, and is certified CE. It comes with a minimum order quantity of 1set, with a price range of USD25000-45000/set for plastic film packaging. Delivery time is usually within 30-60 working days, and payment terms are T/T or Western Union. The Supply Ability is 5 sets per month and it is located in China Dezhou.
We are a factory which specializes in manufacturing Hydraulic Test Stands and Hydraulic Performance Test Equipment for hydraulic pump motor testing. Our HIGHLAND Hydraulic Test Stands feature a compact structure, quality product, and stable performance. It is widely used in excavators and other hydraulic systems. With CE certification, our Hydraulic Test Stands are popular in the global market. If you are interested in our products, please contact us for more details.
